Application method:
Surfaces to be clean and dry with all friable or loose parts removed.
Bond insulation panel (600mm x 300mm) to substrate using 4mm coat of Ecomortar R100. Allow to cure.
Shape insulation panel if desired.
Apply 6mm coat of Ecomortar R100 as render coat. Protect from adverse weather conditions until fully cured.
External render must be protected with either a breathable mineral paint or by a 5mm coating of Ecomortar WP precoloured lime render which gives a maintenance free finish.
Painting : when the surface is uniformly dry, apply a waterproofed lime paint or mineral paint. Waterproofed decorative coatings should not be film forming, impeding breathability.
Guarantee : 10 years Manufacturer’s guarantee (replacement of faulty materials). When applied by Certified Contractors
The guarantee will also cover application costs.
Environmental profile: once hardened the mortars are recyclable or disposable as landfill. They are not toxic and do not contain cement,VOC,PFA,GGBS or radioactive materials.Will not contaminate water or soil and will not deteriorate timber.
Ecomortar R 100
Fire resistance: Class A1
Bonding strength: >0,3 N/m2 FB : A B C
Water absorption : W0
Vapour permeability : µ 0.13 (tabulated)
Thermal conductivity: λ 0.76W.k (tabulated)

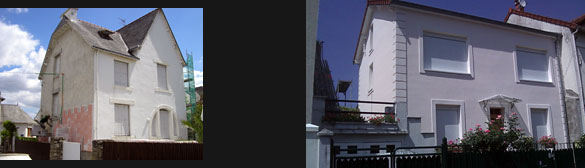

MINERAL INSULATION SYSTEMS
Mineral insulation board
NATURE PLUS CERTIFICATE
Environmental product declaration pursuant to ISO 14025
Declaration number: AUB-XEL-10106-D
European Technical Approval:ETA05/0093
Dimensions (mm): width 600, height 390. Various thickness
Thermal resistance at various thicknesses :
Thickness (mm) 50 60 80 100 120 140 160 180 200
Thermal resistance (R) 1.11 1.33 1.79 2.22 2.67 3.11 3.55 4.00 4.44
At 100 mm thickness with 6mm Ecomortar R100 render/plaster a thermal dispersion value of 0.02 has been achieved.
MINERAL INSULATION SYSTEMS
MULTIPOR
Air permeable, hydrophobic and inert, it will not deteriorate or deform in the presence of moisture ensuring stability and durability (over 50 years).
Highly resistant to fire (Class A1) : it is not combustible.
In conjunction with Ecomortar R100 mortars, condensation is eliminated, hence reducing the energy requirements to provide adequate heating.
European Technical Approval:ETA05/0093
Thermal conductivity (λ) : 0.045 W/(mK)
Compressive strength :> 0.35N/mm2
Tensile strength (perpendicular to faces) : > 0.08 N/mm2
Vapour diffusion coefficient : µ 3 (0.4m3 of air per h/m2)
Fire class : A1 (non combustible/non flammable). Fusion point 1200oC.
Non deformable.
No fibreous or fly ash content.
Totally recyclable
Dimensions (mm): width 600, height 390. Various thickness
Thermal resistance at various thicknesses :
Thickness (mm) | 50 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |
Thermal resistance (R) | 1.11 | 1.33 | 1.79 | 2.22 | 2.67 | 3.11 | 3.55 | 4.00 | 4.44 |
At 100 mm thickness with 6mm Ecomortar R100 render/plaster a thermal dispersion value of 0.02 has been achieved.
MINERAL INSULATION SYSTEMS
(Multipor and St.Astier mortars)

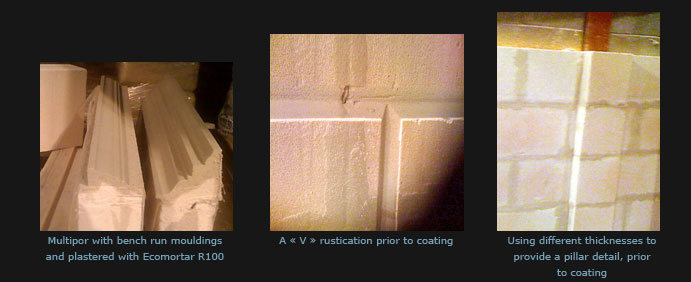

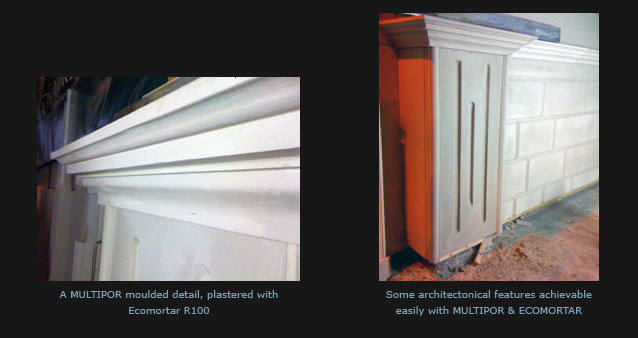

MULTIPOR is easily shaped to provide a number of architectonical features ready to be rendered/plastered with St. Astier Ecomortar R100 mortars. These are non shrinkable
M5 mortars which do not contain cement.

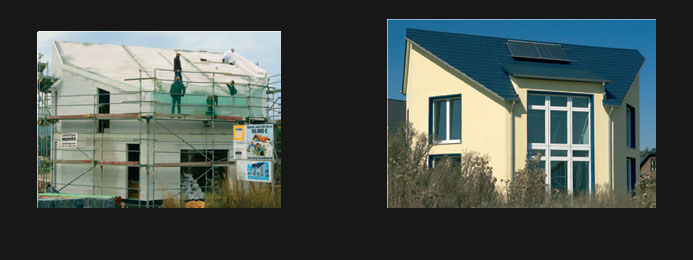

Passive house construction, Germany
